RFRP Farrowing Shelters
Designed for performance. Built for piglet protection. Refined over 10 years.
The RFRP Farrowing Shelter has been developed through real, hands-on farming experience. Every feature is built to protect piglets, support the sow, and make day-to-day management straightforward.
Shelter Dimensions
Length: 3.0m
Width: 2.4m
Height: 1.5m – 1.55m

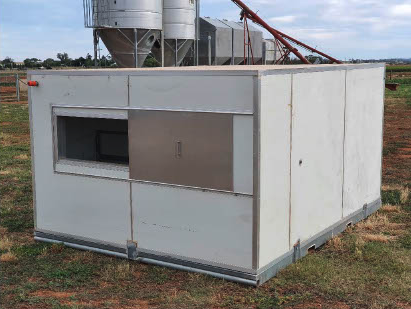

Construction & Climate Control
100mm cool room panel construction (sides and roof)
Cooler in summer and warmer in winter
Intensive sow flooring system
Rear sliding window for airflow management
Insulated panels help regulate temperature year-round, improving comfort for both sow and litter.
Piglet Protection Features
Dedicated creep area positioned at the rear of the shelter
Creep bars fitted alongside walls to reduce piglet mortality
Removable W-strap beneath the steel door to keep piglets contained during the first week of life
Removal indicator system when piglets begin jumping
The creep area is especially useful during difficult farrowings, allowing safe intervention without disturbing the sow.
Practical Management Design
Front opening cool room panel door for pressure cleaning and moving sows in

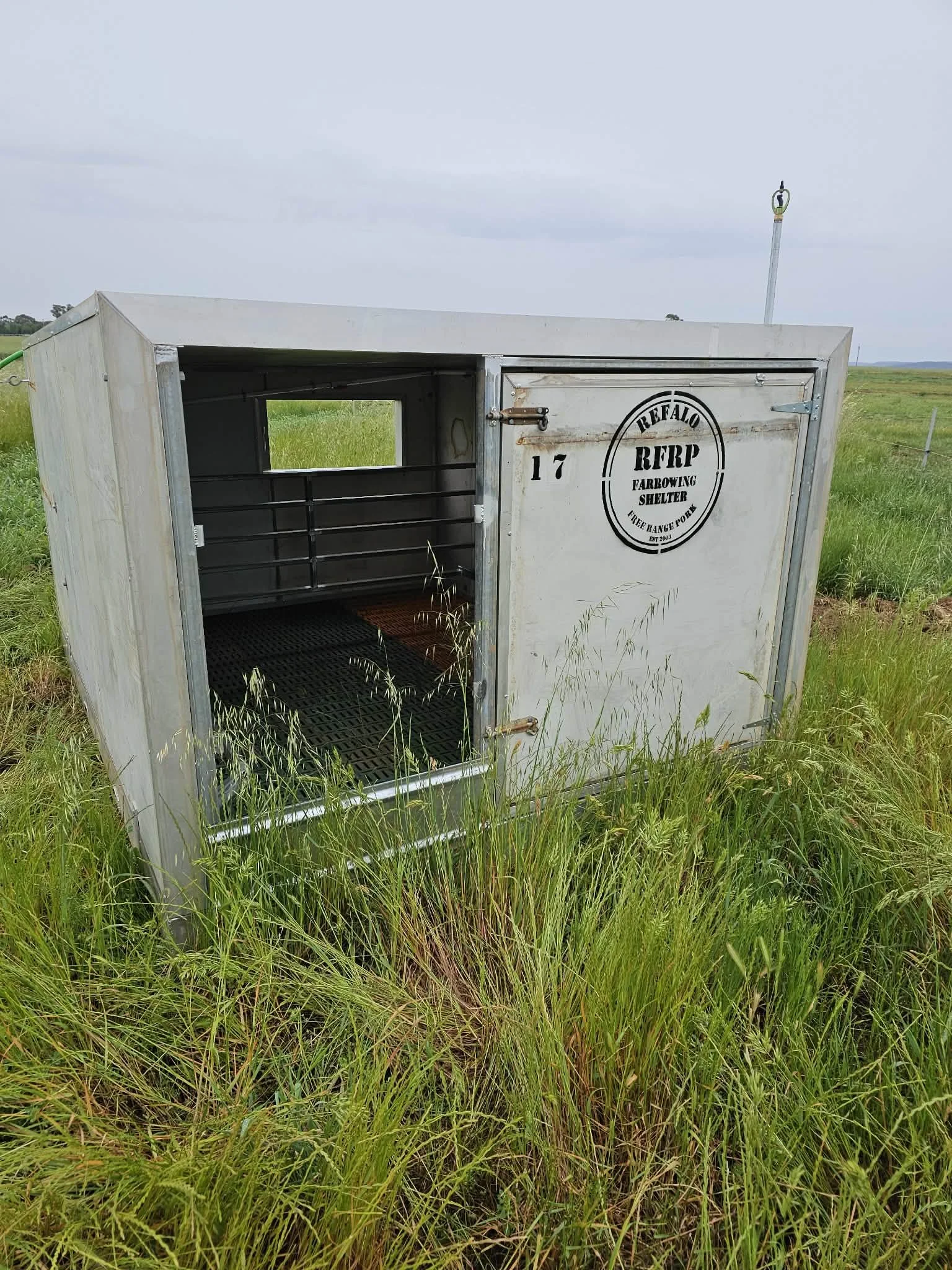

Removable steel door designed to confine sow during farrowing
Option to lock sow out of the shelter when tending to piglets or ear notching
Built-in fork tine points for easy loader relocation
Shelters are designed to be relocated after each farrowing to fresh ground and pressure cleaned for biosecurity.

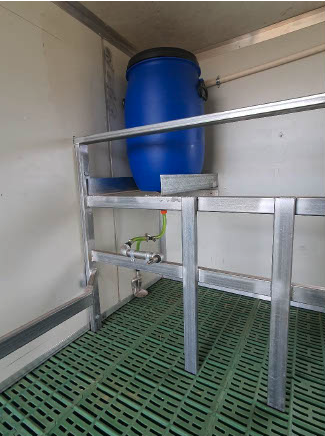

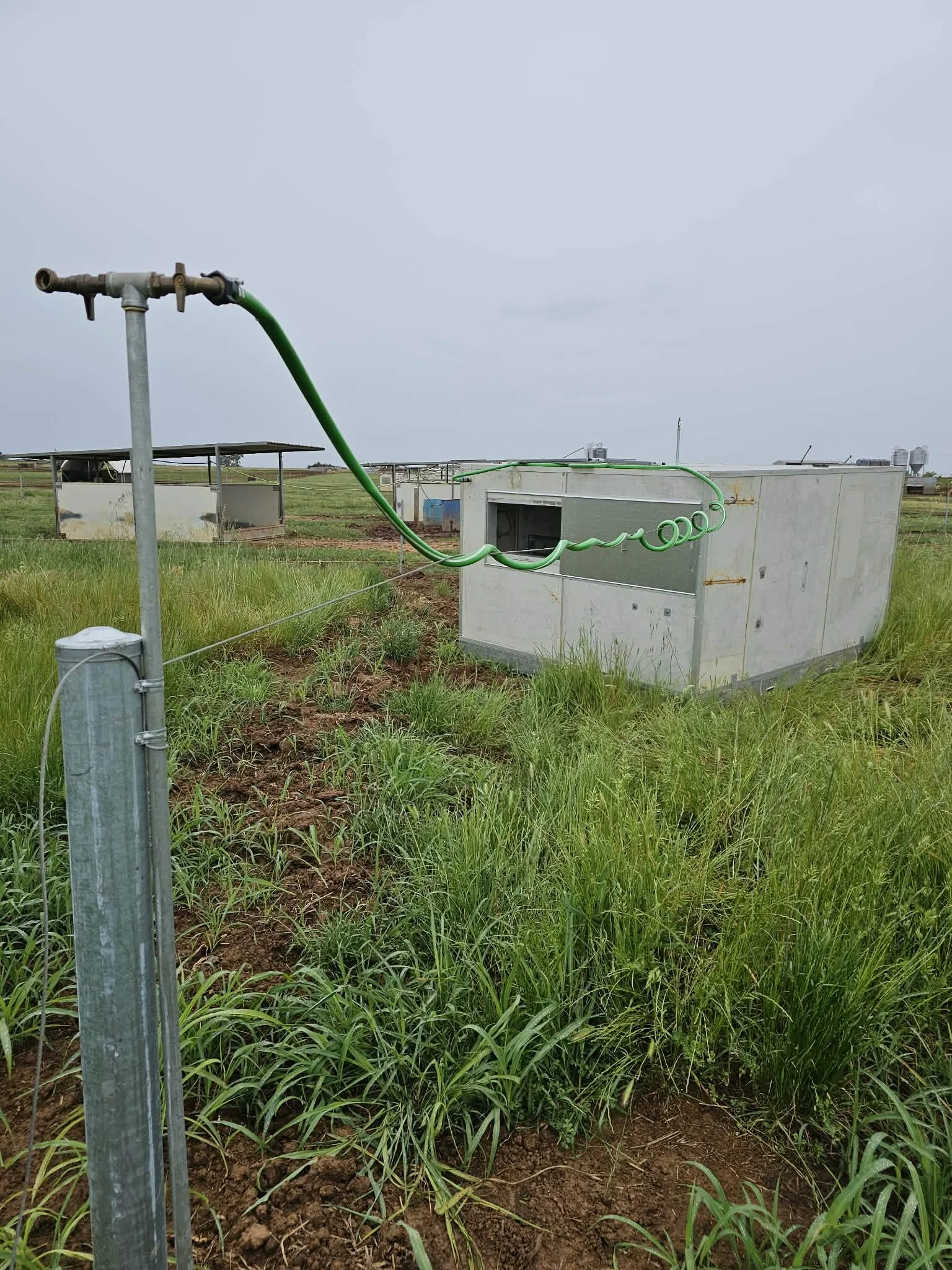

Integrated Water System
Built-in sprinkler system
Sow drinker
Piglet drinker
70-litre water tank with float system
All water supply components are integrated into the shelter for ease of operation and consistent supply.
Materials & Options
These shelters are constructed using second-hand cool room panels. Panels may contain minor cosmetic defects such as sealed drill holes, light dents, or scratches.
All drill holes are sealed with silicone during construction. Each shelter is pressure cleaned and sprayed with Virkon-S on completion.
New cool room panels are available at an additional cost per shelter.
